Stainless Steel Cryogenic Globe Valves Durability LNG Filling Receptacle

Name: Stainless Steel Cryogenic Globe Valves Durability LNG Filling Receptacle
Brand: CD-CNLN
Price: 1 USD

Brand Name : CD-CNLN

Model Number : Customize

Certification : CE/ISO

Place of Origin : China

MOQ : 1pc

Price : 1-100

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100pcs one day

Delivery Time : 2-3days

Packaging Details : Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for cryogenic valves are available We can customize the package for globe valve;

Name : Direct Factory Low Temperature SS or Customize Material REFUELING RECEPTACLE

Key word1 : Customize Material REFUELING RECEPTACLE

Key word2 : REFUELING RECEPTACLE

Nominal Pressure : Customize pressure

Medium flow : Customize ways

Customize : Logo\temperature\color\etc.

Features : Erosion and rust resistance\durability

Suitable Media : LNG, LN2

Contact Now

Direct Factory Low Temperature SS or Customize Material REFUELING RECEPTACLE

Customer Notice

1. If customers have special requirements for products, they must provide the following instructions in the order contract:
a, the length of the structure
b. Connection type;
c. Nominal diameter
d. The use medium, temperature and pressure range of the product;
e. Testing, inspection standards and other requirements.

2. The factory can configure various driving devices according to customer specific requirements.

3. If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract on the condition that the supply and demand sides understand and agree.

4. For futures and ordering customers, please call the letter to tell the valve model, specifications, quantity, delivery time and place in detail. And advance payment of 30% of the total contract amount, the supplier is ready for production.

Notes When Use

Natural gas vehicle filling port

1. The CNG plug-in intake pipe is 6mm 8mm 12mm, with large air flow, built-in check valve for high-frequency operation, and can be re-inflated 1500 times.
2. Working pressure 22MPa, detection pressure 48MPa
3. Good performance in harsh environments such as high temperature, extreme cold, sand and dust
4. The valve has a rear sealing function in the fully open position.
5. Panel Mounting
7. The sealing test of each valve is carried out under 22MPa nitrogen before leaving the factory, and the sealing test is carried out at 5% and 1.5 times of the rated working pressure.

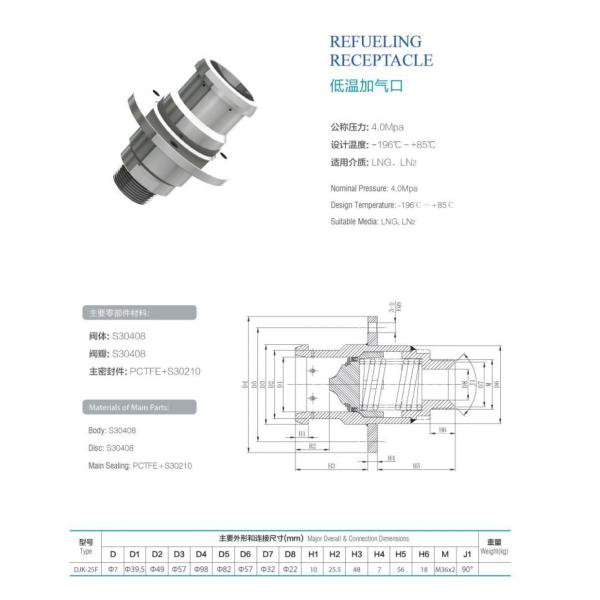

Product Description

Nominal Pressure	4.0Mpa
Design Temperature	-196℃～+85℃
Suitable Media	LNG, LN2
Materials of Main Parts
Body	S30408
Disc	S30408
Main Sealing	PCTFE+S30210

Display

Stainless Steel Cryogenic Globe Valves Durability LNG Filling Receptacle

FAQ

Q1. What is your MOQ?

Our MOQ is one piece.

Q2. Do you provide sample for customer?
Yes, sample is available.

Q3. Do you do OEM service?
Yes, we accept OEM order and can make customer's LOGO on the products.

Q4. Do you support customization?
Yes, customization is acceptable.

Q5. Can you advise suitable cryogenic valves to me?
We have more than 15 years experience in cryogenic field. We are professional in valve selection and will advise you suitable valves with detailed parameters and prices.

Q6. How long is your delivery time?
It usually takes 5-30 days depending on the quantity of the order and the stock.

Thank you so much for your attention, for more information, please click " Contact Now"
